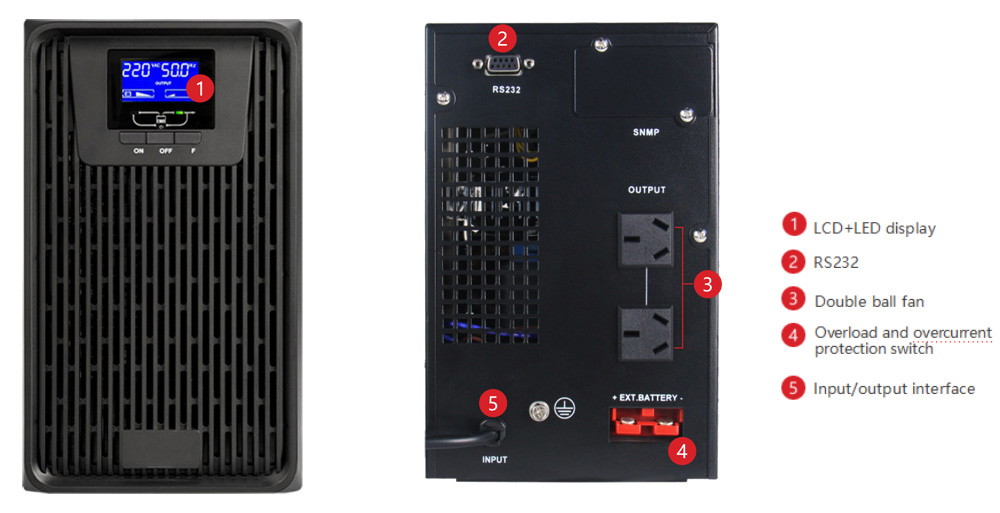

HP series 10KVA is a high frequency true online ups, this 10kva ups has complete detection and protection functions; It is high frequency ups with small size, light weight, and high efficiency. It uses LED+LCD to visually display the running status. In order to facilitate users to achieve centralized monitoring and remote monitoring of UPS, the SNMP module can be added.
HP series 10KVA is a high frequency true online ups, this 10kva ups has complete detection and protection functions; It is high frequency ups with small size, light weight, and high efficiency. It uses LED+LCD to visually display the running status. In order to facilitate users to achieve centralized monitoring and remote monitoring of UPS, the SNMP module can be added.
True online double conversion; Dual DIP control technology;
Three-level inverter technology;
Input power factor 0.99;
50/60Hz frequency conversion mode; Ultra-wide input range;
Compatible with generator input; Switching time 0s;
SNMP+USB+RS-232 multiple monitoring;
| Model | 1KVA/2KVA/3KVA/6KVA/10KVA | |
| Type | True online double conversion | |
| Phase | Single phase input,single phase output | |
| Input | Input phase | Single phase L+N+G |
| lnput range | 90~300VAC | |
| Input frequency range | 40Hz-70Hz | |
| Input power factor | ≥0.99 | |
| Output | Output phase | Single phase L+N+G |
| Rated voltage | 208/220/230/240VAC | |
| Output voltage accuracy | ±1% | |
| Output frequency | 50/60±4Hz(Phase lock follows mains)/50/60 Hz±0.1%(Fixed frequency mode) | |
| Output waveform | Pure sine wave | |
| Output THD | <2%(Linear load) | |
| <6%(Nonlinear load) | ||
| Overload capacity | 10mins@105%~125%rated loads 1min@125%~150%rated loads 0.5 sec>@150%rated loads | |
| Efficieney | AC mode | 93% |
| Battery mode | 91% | |
| Battery and charger | Battery voltage | 1KVA DC36V/DC24V 2KVA DC72V/DC48V 3KVA DC96V/DC72V 6KVA DC192V 10KVA DC192V |
| Battery number | ong backupmedel:16pes | |
| Charge current | ong backup medel(external battery):4A | |
| Appearanc | Shape | Tower/adk type |
| Display and communicate | LCD+LED | Input output voltage voltage,frequency,load percentage,working mode,ups working status |
| Communicate interface | RS232(Standard) | |
| lntelligent slot | SNMPSupport PCand phone appremote monitoring) | |
| Other | Working temperature | -10~45℃ |
| Working humidity | 0-98%(non-condensation) | |
| Noise | <50dB@1 meters | |
