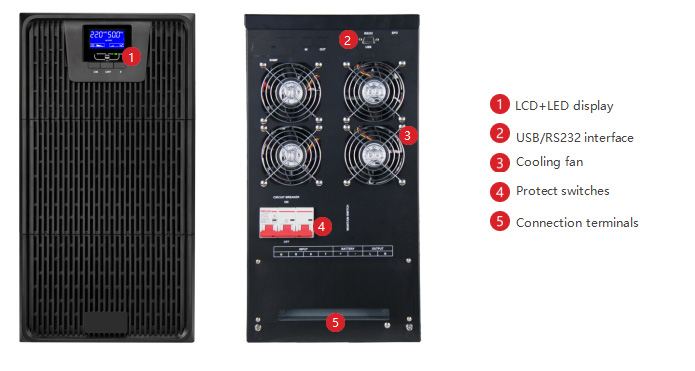

This online tower UPS provide pure sine wave power and extended running time to support critical electronics during power disruptions. It support 380V/400V/415V three phase input and 220V/230V/240V single phase output. It is iigh frequency type and high efficiency, which has complete detection and protection functions; It is true online ups with double conversion.
This online tower UPS provide pure sine wave power and extended running time to support critical electronics during power disruptions. It support 380V/400V/415V three phase input and 220V/230V/240V single phase output. It is iigh frequency type and high efficiency, which has complete detection and protection functions; It is true online ups with double conversion.
True online double conversion; Dual DIP control technology;
Three-level inverter technology;
Input power factor 0.99;
50/60Hz frequency conversion mode; Ultra-wide input range;
Compatible with generator input; Switching time 0s;
SNMP+USB+RS-232 multiple monitoring;
| Model | HP10K3/1 HP15K3/1 HP20K3/1 | ||||
| Input | 3L+N+G :380V | ||||
| Voltage Range | nput range | 76VAC(same phase voltage)±3% @100% loads; | |||
| Low voltage recover | 186 VAC(same phase voltage)±3% @100% loads; | ||||
| High voltage switch | 300 VAC (same phase voltage)±3% | ||||
| High voltage recover | 290 VAC (same phase voltage)±3% | ||||
| Frequency range | 46~54Hz or 56~64Hz | ||||
| Power factor | ≥0.99 @100% loads | ||||
| Output | Output voltage | 208/220/230/240VAC | |||
| Voltage range(Batt. mode) | ±1% | ||||
| Frequency(Synchronous correctionrange) | 46~54Hz or 56~64Hz | ||||
| Frequency range（Batt. model） | 50 Hz±0.1 Hz or 60 Hz±0.1 Hz | ||||
| Surge ratio | 3:1 | ||||
| Harmonic distortion | ≤3% THD (Resistive loads) | ||||
| ≤5% THD (Nonlinear load) | |||||
| Switch Harmonic | AC to DC | 0 | |||
| DC to bypass | 0 | ||||
| Wave form (Batt.mode) | Pure sine wave | ||||
| Efficiency | AC mode | 91% | |||
| Battery mode | 91% | ||||
| Battery | Long backup model | Model | According to user | ||
| Capacity | 16 pes*12V(16-20pcs adjustable) | ||||
| Charge current | 4.0A | ||||
| Charge voltage | 218.4 VDC±1% | ||||
| Display | LCD or LED | Input output voltage voltage frequengy.load percentage,working mode.ups working status | |||
| Alarm | Battery mode | buzz every 4 seconds | |||
| Battery voltage low | buzz every 1 second | ||||
| Overload | buzz every 0.5 second | ||||
| Fault | Continuous buz | ||||
| Environment | Humidity | 0-95%RH @ 0-40°C(non-condensation) | |||
| Noise | Less than 60dBA @1 meter | ||||
| Monitor | Smart RS-232/USB(option) | support Windows 2000/2003/XP/Vista/2008,Windows 7/8,Linux,Unix and MAC | |||
| Other | SNMP(option) | ||||
